Customer.io

Customer.io is a messaging automation platform. It has no built-in SMS channel for AlphaSMS, but every Customer.io plan can call an external API with the Send and receive data action (also available as the Webhook channel in broadcasts).

This guide shows how to send SMS from a Customer.io campaign, broadcast or transactional message through the AlphaSMS API, and how to receive delivery reports back.

Direction	How it works
Customer.io → AlphaSMS	`POST` webhook action with a JSON body where `type` is `sms`
AlphaSMS → your system	Delivery report to the URL you pass in the `hook` parameter

Before you start

An active AlphaSMS account with Activate API enabled — see API settings.
An API key (step 1 below).
A sender name — the alphanumeric signature your subscribers see instead of a phone number (3 to 11 Latin letters and digits). AlphaSMS does not use a "from" phone number.
Customer.io profiles that contain a phone attribute in international format (for example +380971234567 or 380971234567).

Step 1. Create an API key

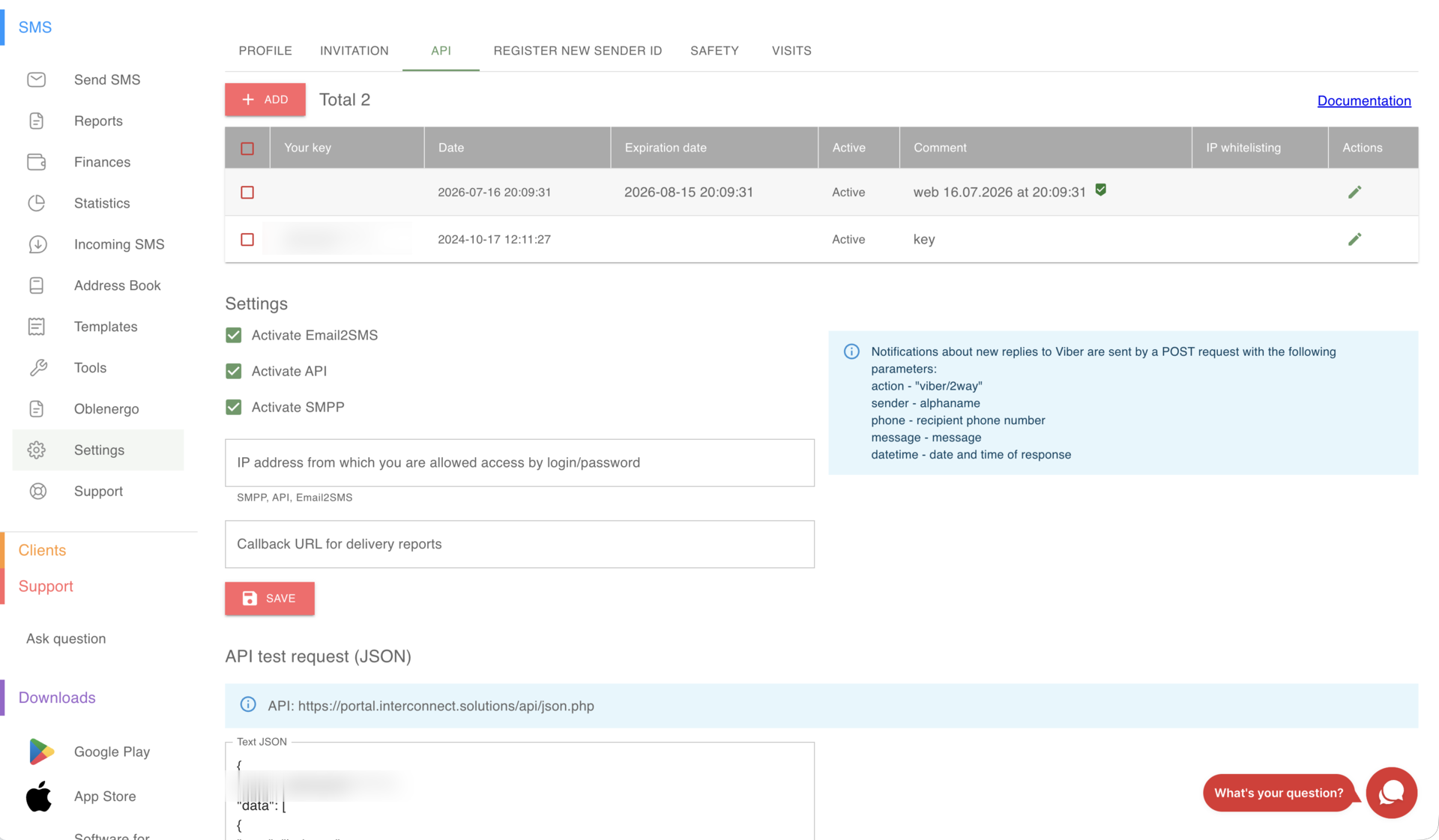

In the AlphaSMS cabinet open Settings → API. The table lists your keys with their creation date, expiration date, state, comment and IP whitelist.

Customer.io - photo 1

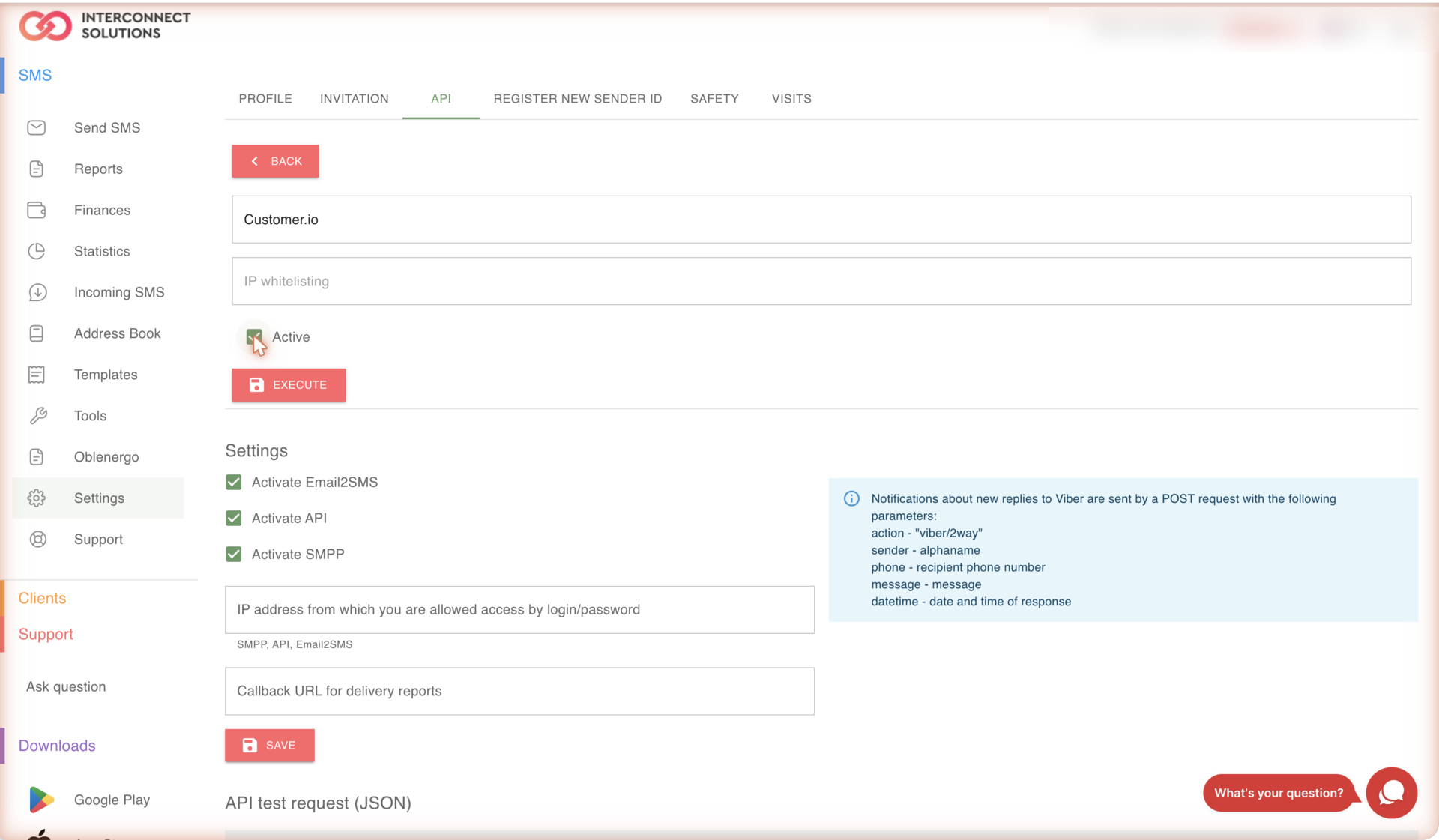

Click ADD, type a comment (for example Customer.io), tick Active and press EXECUTE.

Customer.io - photo 2

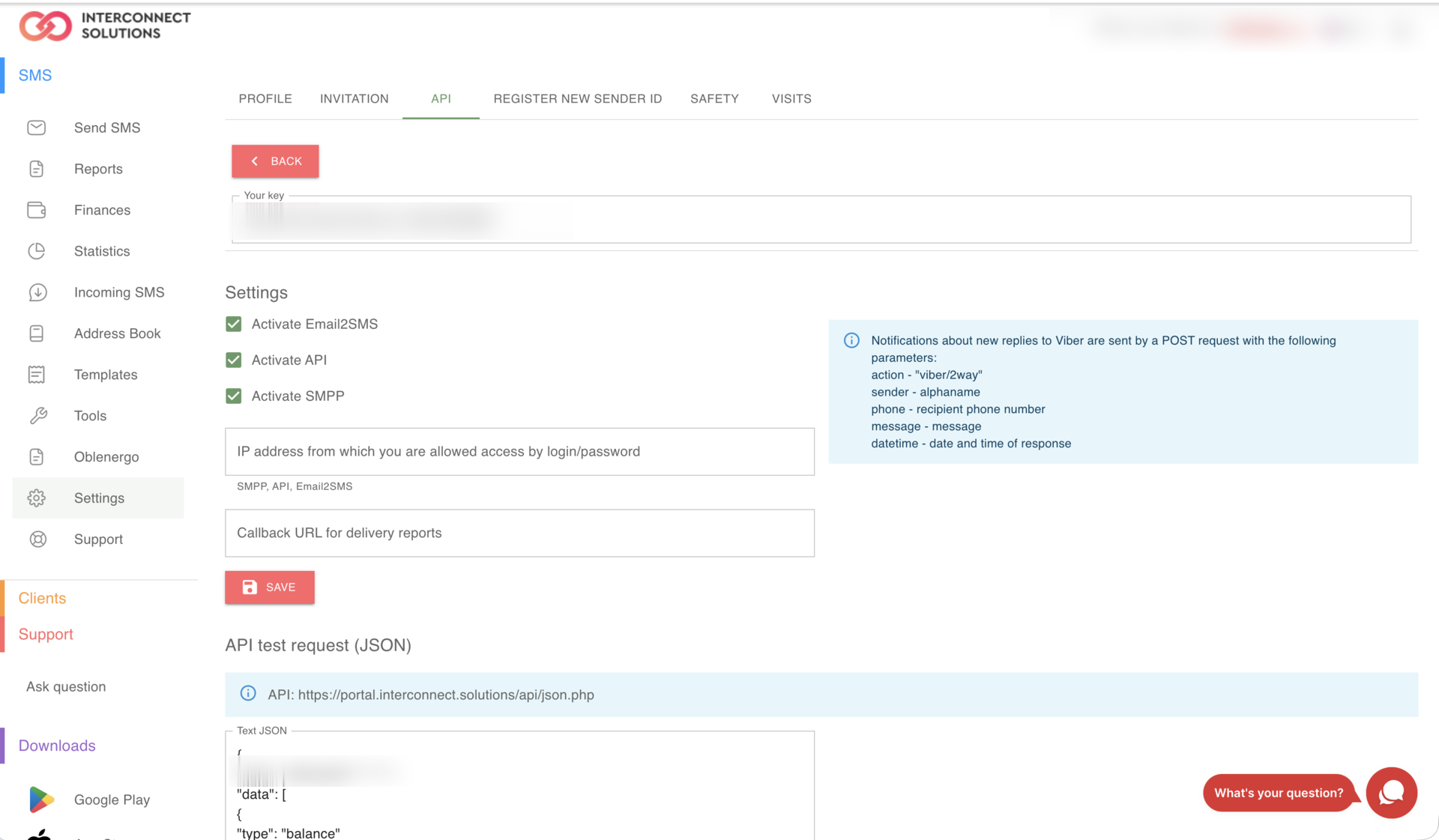

The full key is displayed once, right after it is created. Copy it now — afterwards the table shows only the first characters of the key.

Customer.io - photo 3

attention

Leave IP whitelisting empty for a key used by Customer.io. Customer.io sends webhooks from a large, changing pool of egress addresses, so a fixed IP list will start rejecting your traffic with Access denied. Use a dedicated key for Customer.io instead, so that you can revoke it without touching your other integrations.

Step 2. Choose the sender name

The sender name is passed with every message in sms_signature, so you can use a different one per campaign — a brand name for marketing, a product name for transactional alerts. Names are handled dynamically: you are not limited to a preset list, and a new name starts working as soon as you send with it.

The only restrictions come from the destination network: some operators and countries accept alphanumeric senders only after registration, and may reject or replace an unknown name. Ask support to confirm the destinations your campaigns target.

The names already used on the account are listed in the cabinet — see Sender ID.

Step 3. Add the webhook action in Customer.io

Campaign / journey — open the workflow, drag in the Send and receive data block and click Add Request.
Broadcast — on the Content step choose the Webhook channel and click Add content.

Customer.io - photo 4

Configure the request:

Field	Value
Method	`POST`
Request URL	`https://alphasms.net/api/json.php`
Header	`Content-Type: application/json`

large campaigns

This endpoint processes the message while Customer.io waits, which is fine for transactional volumes. If you plan large campaigns, ask support about the asynchronous endpoint — it accepts requests into a queue and answers immediately.

Customer.io adds its own X-CIO-Idempotency-Key and X-CIO-Signature headers automatically. No extra authentication header is required — the AlphaSMS API is authenticated by the auth field inside the request body.

Step 4. Build the request body

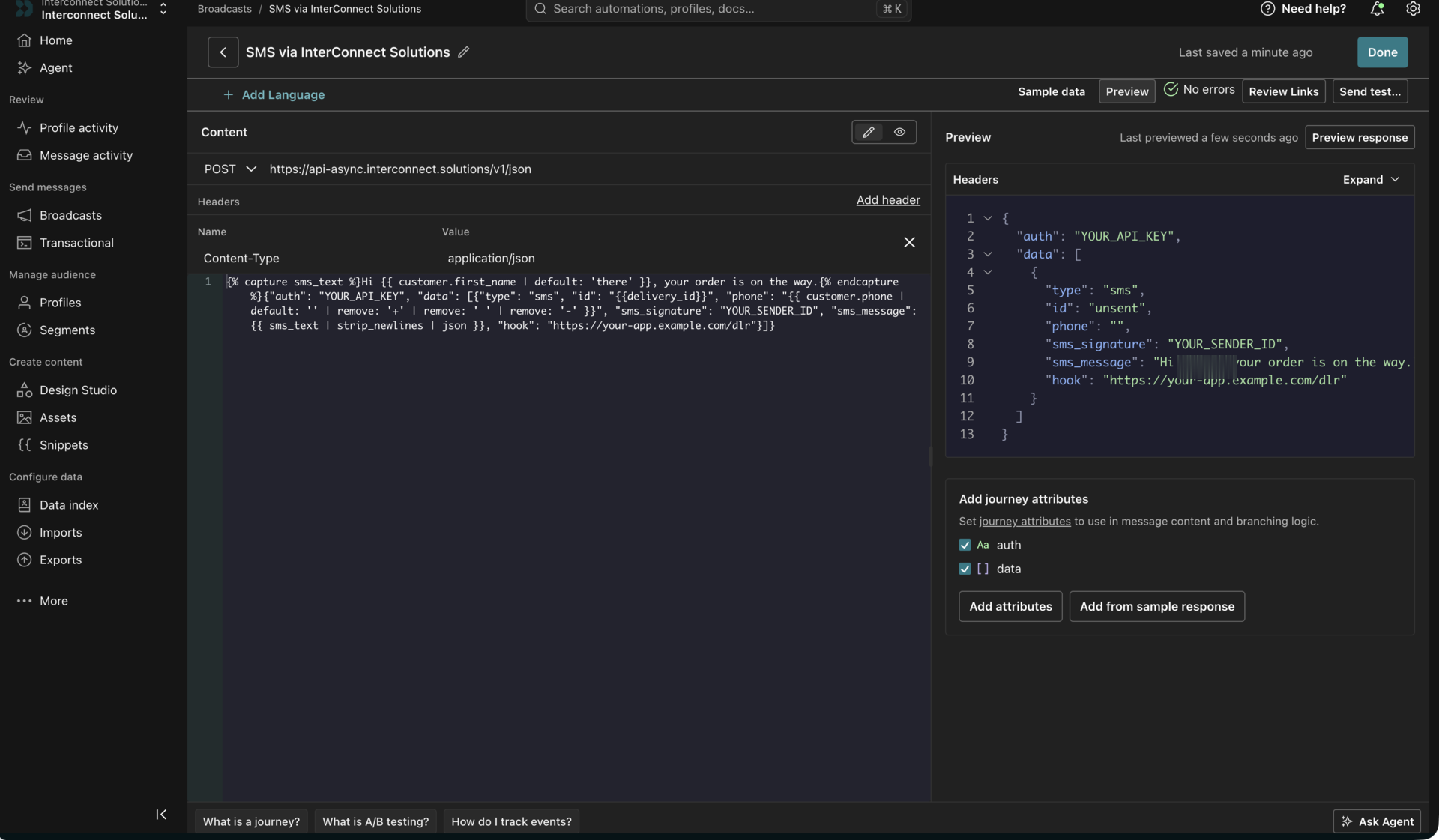

Paste the payload below into the body editor and replace YOUR_API_KEY and YOUR_SENDER_ID. The right-hand Preview panel renders the Liquid against a sample profile, so you can see the exact JSON that will be sent.

Customer.io - photo 5

{% capture sms_text %}Hi {{ customer.first_name | default: 'there' }}, your order is on the way.{% endcapture %}
{
  "auth": "YOUR_API_KEY",
  "data": [
    {
      "type": "sms",
      "id": "{{delivery_id}}",
      "phone": "{{ customer.phone | default: '' | remove: '+' | remove: ' ' | remove: '-' }}",
      "sms_signature": "YOUR_SENDER_ID",
      "sms_message": {{ sms_text | strip_newlines | json }},
      "hook": "https://your-app.example.com/dlr"
    }
  ]
}

Parameter	Required	Description
`auth`	yes	Your API key
`type`	yes	`sms`. Other values enable Viber, RCS, WhatsApp and multichannel sending
`id`	no	Your own message identifier, returned in every delivery report. `{{delivery_id}}` is the Customer.io identifier of this exact message instance
`phone`	yes	Recipient in international format, digits only
`sms_signature`	yes	Sender name
`sms_message`	yes	Message text
`hook`	no	URL that will receive delivery reports for this message
`sms_lifetime`	no	Validity period in seconds, from `60` to `259200` (3 days)
`short_link`	no	`true` shortens and tracks links in the text (according to the tariff)
`unsubscribe_link`	no	`true` appends an unsubscribe link (according to the tariff)

The full parameter list is documented in Send SMS.

Liquid notes

{{delivery_id}} is empty in the composer preview (it shows unsent) and is filled in at send time. Keep it — the value must be unique for every message: a repeated id is treated as a duplicate and the message is not sent.
Wrap the text in a capture block and output it with the json filter. The filter adds the surrounding quotes and escapes quotes, backslashes and control characters, so emojis, apostrophes and line breaks in customer data cannot break the JSON.
Do not use the escape filter on the message text — in Customer.io it percent-encodes the string (@ becomes %40), and your subscribers will receive the encoded text.
Always add | default: '' to attributes that may be missing. Customer.io treats an undefined variable as a composer error (undefined variable: customer.phone) and the request is sent with a broken body, which the API rejects.
{{event.*}} variables exist only in event-triggered campaigns. In a broadcast or a segment-triggered campaign they raise the same undefined-variable error.
Send one message per profile. If you need to send to several numbers at once, add more objects to the data array.

Step 5. Read the response

The endpoint answers with HTTP 200 in all cases and puts the result of every message in the body:

{
  "success": true,
  "data": [
    { "success": true, "data": { "id": "01HB…", "msg_id": 123456789, "parts": 1 } }
  ]
}

In the Response section of the webhook action click Add attributes and map:

Journey attribute	Value
`sms_msg_id`	`response.data[0].data.msg_id`
`sms_parts`	`response.data[0].data.parts`
`sms_error`	`response.data[0].error`

attention

A rejected message also returns HTTP 200, so Customer.io counts it as a success and never retries. Store response.data[0].success in a journey attribute and branch on it if you need alerting or a fallback channel.

An accepted message can still be rejected when the gateway processes it. The reason appears in the delivery report and in Reports → API in the cabinet:

Reason	Meaning
`Error in Alpha-name`	The sender name is not allowed on this route or by this operator
`Not enough money`	Insufficient balance
`Duplicate ID`	The `id` value was already used by this account — it must be unique
`Please enter valid receiver phone number`	Empty or malformed `phone`
`Receiver blacklisted`	The number is in your black list or has unsubscribed
`SMS is too long`	The text exceeds the maximum message length
`Operator not supported`	No route to this operator

Step 6. Receive delivery reports

Every message that carries a hook parameter produces a POST request to that URL each time its status changes. This is where the final outcome of a send appears, so configure it before launching a campaign.

{
  "id": "01HB…",
  "msg_id": 123456789,
  "type": "sms",
  "status": "DELIVERED",
  "updated": "2026-08-10T12:34:56+03:00",
  "request_id": "cf-ray-1234567890-ABC"
}

id — the value you sent in the request (the Customer.io delivery_id in the payload above), which is how you match a report to a message.
msg_id — the identifier assigned by the gateway.
updated — the moment the status changed, YYYY-MM-DDThh:mm:ss±hh:mm.
request_id — the identifier of the request that carried this message (asynchronous endpoint).

The request is signed: the X-Signature header contains sha256(json_body + api_key), computed with the same key that sent the message. Reject requests whose signature does not match.

$body = file_get_contents('php://input');
if (!hash_equals(hash('sha256', $body . $apiKey), $_SERVER['HTTP_X_SIGNATURE'] ?? '')) {
    http_response_code(403);
    exit;
}

Answer with HTTP 200. Statuses are listed in Message statuses; the most common ones are ACCEPTED, QUEUED, DELIVERED, UNDELIVERABLE, EXPIRED, REJECTED.

An account-wide callback URL can also be set in Settings → API → Callback URL for delivery reports; it applies to all messages of the account. Details: Webhook.

Step 7. Test and go live

Click Send test… in the composer and confirm the request. The response is shown in the Preview panel — this is a real request, so a valid key will really send an SMS.
Check the result in the cabinet: Reports → API shows the message, its price and its status.
Switch the action to Send automatically (campaigns) or finish the broadcast wizard.

Volume and audience

There is no fixed request-per-second limit. If you plan bursts of tens of thousands of messages, tell support in advance so the throughput of the account can be reviewed.
Customer.io aborts a webhook after 16 seconds. Our API answers well inside that window.
Add a filter on the phone attribute (for example phone exists) to the trigger or audience of the campaign, so profiles without a number never reach the webhook.

Other channels

The same webhook action can send Viber, RCS, WhatsApp or a voice call, and can chain them as a fallback — for example Viber first and SMS only if Viber was not delivered. Change type and add the channel parameters:

`type`	Result
`viber`	Viber message
`viber+sms`	Viber with SMS fallback
`rcs+sms`	RCS with SMS fallback
`voice`	Voice call
`hlr`	Number lookup — operator, roaming and portability, without sending a message
